Next Generation Duplex Refiner/Conche

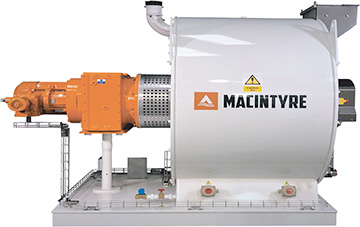

3,000Kg & 5,000Kg Next Generation Duplex Refiner/Conche
Our superior range incorporating double grinding bar support wheel mechanism, longer cylinder and smaller diameter area for refining particles and removal of volatiles, acidity and moisture.
Original and versatile 5 in 1 manufacturing solution performing the function of a cocoa liquor mill, sugar mill, mixer, refiner and conche – all in one single machine. The Refiner/Conche is the universal solution for making chocolate, compounds, coatings, pralines, truffles and fillings for small to medium production capacities. Even a large variety of rework can be processed with the Refiner/Conches following a specific loading procedure. Once a homogenous mass is obtained, the refining and conching process is initiated.
The Refiner/Conche has a specially designed shaft equipped with grinding bars and a pressure adjusting mechanism to adjust the pressure between the grinding bars and the lining bars (around the cylinder of the Refiner/Conche). This allows a reliable process to achieve and maintain a constant quality of the product from batch to batch.
Advantages
• Attractively priced solution for the manufacture of chocolates, compounds, creme, etc.
• Reliable and proven system
• Compact and hygienically closed design
• Easy operation
• Low maintenance
• Suitable for producing various products in one single machine
• Automatic conching procedure control
• Automatic temperature control system.
Options
• Shear Attachment – to enable processing of low fat masses
(24% – 29% fat content)
• Anti-Vibration Strip – reduces vibration and noise
• For Sound Reduction – please contact us.
Features
• Electric Main Drive Motor and Refining Pressure Motor (IE3)
• Electric immersion heating, controlled by PT100 probe, 4-20 mA, within the jacket water system
• Electric extractor fan provides cross refiner air flow through hopper vent for reduction of volatiles, acidity & moisture
• Product temperature control using PT100 probe, 4-20mA
• Chilled water inlet solenoid valve, 1″ BSP, 24V DC, controlled by product temperature probe
• Loading of powders through machine hopper
• Two infeed pipes for liquid materials at gearbox end of machine, DN50 flanges
• Low maintenance mechanical food grade product seal for rotating shaft at gearbox end using constant 0.5 bar air pressure
• Safety protected access cover for maintenance purposes
• M Guard fitted to control panel for instant secure remote service
• Hard wearing, specially developed lining and grinding section
Control System – Schneider / Siemens / Allen Bradley / Rockwell / Omron (Mitsubishi)
• Operator interface by 10” color touch screen for set up, process control and maintenance
• Control of pressure and temperature via PLC
• Multiple recipe programming with multi stage capability
• Comprehensive suite of control and monitoring functions including maintenance, energy monitoring, storage and downloading data for production along with safety protection and process monitoring
Technical Data
Model | Machine Capacity (kg) | Main Motor Drive (kW) | Power Assisted Motor (kW) | Electric Immersion (kW) | Length (mm) | Width (mm) | Height (mm) | Net Weight (kg) |
|---|---|---|---|---|---|---|---|---|
RC3000D | 3000 | 55 | 0.55 | 2 – 3 | 4137 | 1703 | 2139 | 9200 |
RC5000D | 5000 | 75 | 0.55 | 4 – 3 | 4218 | 2033 | 2464 | 13500 |
MacIntyre reserves the right to change without prior warning.
